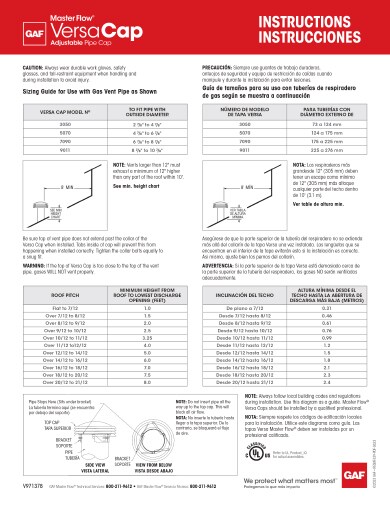

Master Flow® Versa Cap Install Instructions TRILINGUAL - RESMF339
Installation Instructions and Guides
About Master Flow™ Versa Caps
Master Flow™ Versa Cap Adjustable Pipe Cap helps protect rooftop flues, hot stacks, and B-vents. The adjustable design offers convenient installation with a screwdriver-adjustable clamp to ensure a tight fit. Aluminum construction helps resist rust that can detract from the look of your roof and provides a neat, finished appearance. Positive draft design helps reduce the risk of clogging. A large selection of sizes is available to fit pipes with outside diameters ranging from 2 7 ∕8" up to 10 7 ∕8".
| Weight | Fits Pipe Diameters | Single & Double Wall Metal Pipes | Overall Heights | Overall Diameters | |
| MODEL #3050 | 13.8 lb (6.3 kg) | 2.875" - 4.875" (73 mm - 124 mm) | 3" & 4" (76 mm x 102 mm) | 4.5" (114.3 mm) | 6.625" (168.3 mm) |
| MODEL #5070 | 15 lb. (6.8 kg) | 4.875" – 6.875" (124 mm – 175 mm) | 5" & 6" (127 mm x 152 mm) | 4.75" (120.65 mm) | 9.5" (241 mm) |
| MODEL #7090 | 18.96 lb. (8.6 kg) | 6.875" – 8.875" (175 mm – 225 mm) | 7" & 8" (178 mm x 203 mm) | 5.875" (149.23 mm) | 11.625" (295.28 mm) |
| MODEL #9011 | 21.5 lb.(9.75 kg) | 8.875" – 10.875" (225 mm – 276 mm) | 9" & 10" (229 mm x 254 mm) | 6.5" (165 mm) | 12.75" (323.85 mm) |
Learn about Master Flow™ Rooftop Accessories
Rooftop accessories like flashing, pipe caps and pipe boots can help prevent water infiltration from on top of the roof. GAF offers factory-made solutions for both to aid installation, improve performance, and elevate aesthetics.
Product Documentation
-
-
-_data-sheet.jpg?width=80)

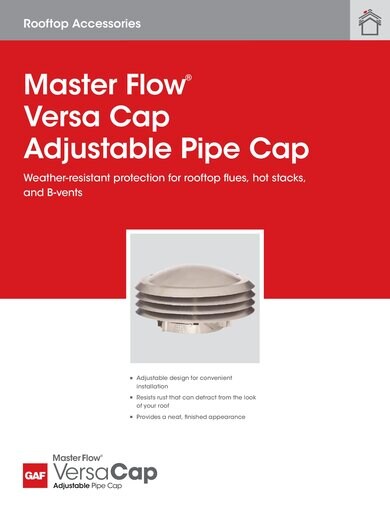

Master Flow® Versa Caps - RESMF185
Data Sheets
-
